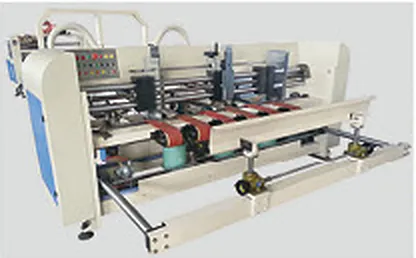

KM-2400 / KM-2500
Automatic Folder Gluer
Automatic folder gluer for 3 and 5 ply board, PLC and touch screen control.
- 3 or 5 ply
- 12 kW
Gallery
Gallery
Overview
The automatic folder gluer folds and glues box blanks into flat glued cartons. The KM-2400 and KM-2500 handle 3 or 5 ply board, with PLC and touch screen control and branded electrical components.
Applications
- Glued and stitched cartons
- Box finishing
Technical specifications
Technical specifications
Specifications as per current catalogue. Final configuration confirmed at quotation.
| Item | KM-2400 | KM-2500 |
|---|---|---|
| Max cardboard (mm) | 900 × 2200 | 1200 × 2500 |
| Min cardboard (mm) | 300 × 900 | 300 × 900 |
| Dimensions | L11000 × W3000 × H1600 mm | L12500 × W3200 × H1600 mm |
| Total weight | 5500 kg | 6500 kg |
| Power required | 12 kW, 380 V, 3 phase, 50 Hz | |
| Paperboard thickness | 3 or 5 ply paperboard | |

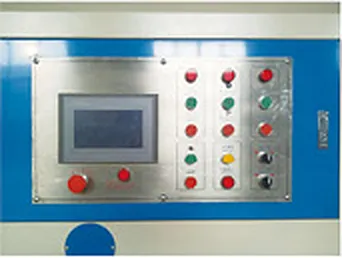

| Control | PLC and touch screen | |

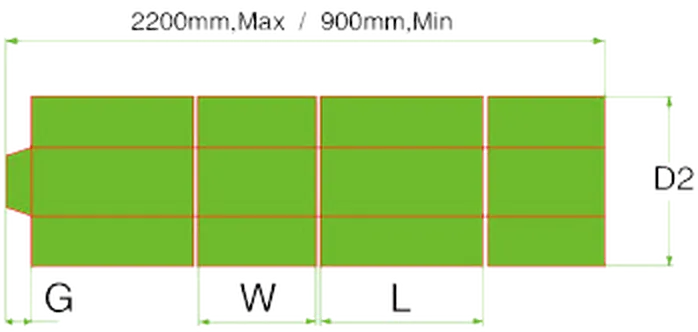

Blank size (catalogue diagram: 2200 mm max, 900 mm min)
- Blank size W
- 180–450 mm
- Blank size L
- 270–650 mm
- Blank size D2
- 300–900 mm
- Blank size G
- 35–40 mm
| Part | Brand or origin |
|---|---|
| Touch screen | MLGS |
| PLC | Panasonic |
| Inverter | HLP |
| Intermediate relay | Omron |
| Photoelectric switch | Omron |
| Switch power | Meanwell |
| Thermal overload relay | CHINT |
| Circuit breaker | CHINT |
| Overtravel limit switch | CHINT |
| Contactor | Siemens |
| Button | Schneider |
Specifications as per current catalogue. Final configuration confirmed at quotation.
