Corrugation Machinery
Board Starts Here.
01 / Corrugation Machinery
Complete 3, 5 and 7 ply production lines, plus mill roll stands, preheaters, single facers, gluing machines, bridges and double facers.
Choosing the Right Machine
Start with the board you sell: 3, 5 or 7 ply, and which flutes (A, B, C or E). That decides the number of single facers and the line layout.
Match the working width to your widest reel. Catalogue lines cover paper widths from 1400 to 2200 mm.
Plan speed for your target output. Catalogue line speeds range from 100 to 220 m/min, with high, middle and low grade configurations.
Machines · 08
Machines

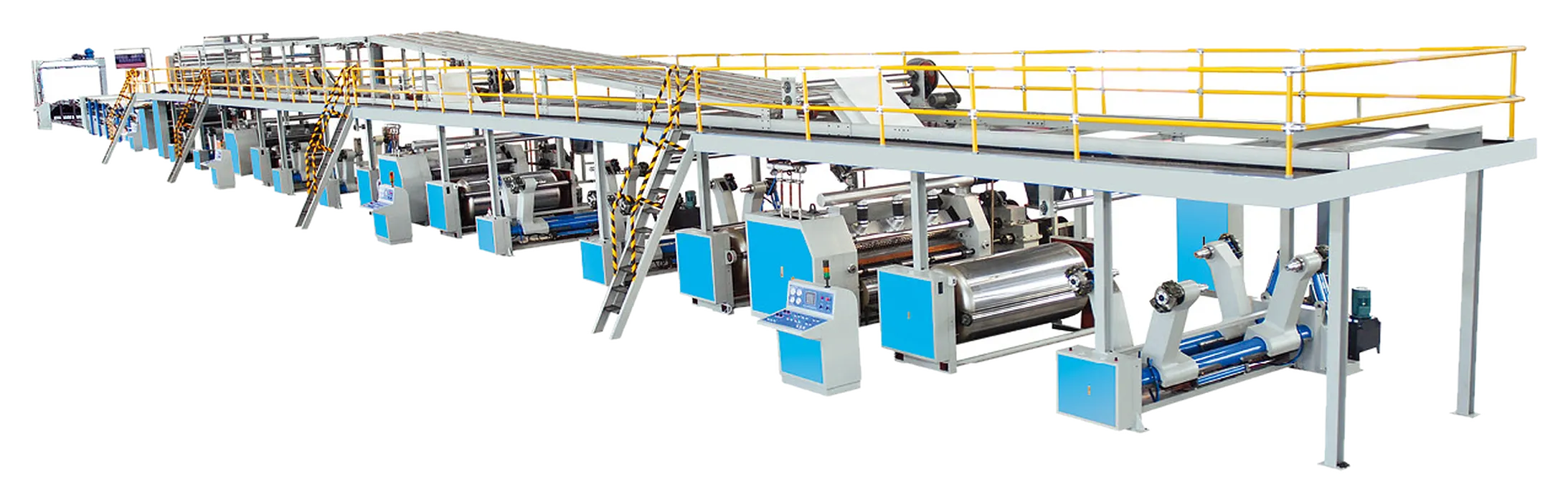

KM-Series 3/5/7 Ply Corrugated Cardboard Production Line
KM-Series- 100–220 m/min
- 1400–2200 mm

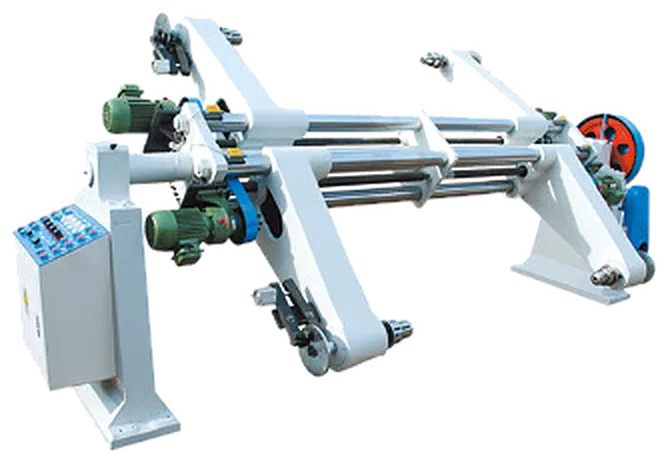

KM Electric Mill Roll Stand
- Φ1500 mm reel
- 1500 kg

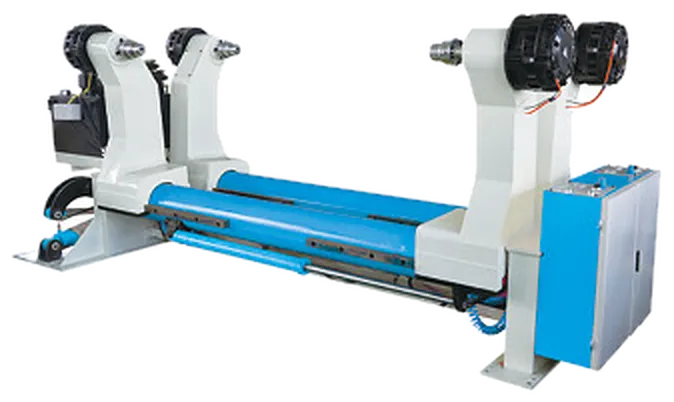

KM Hydraulic Mill Roll Stand
- 3000 kg
- 4.0 kW hydraulic

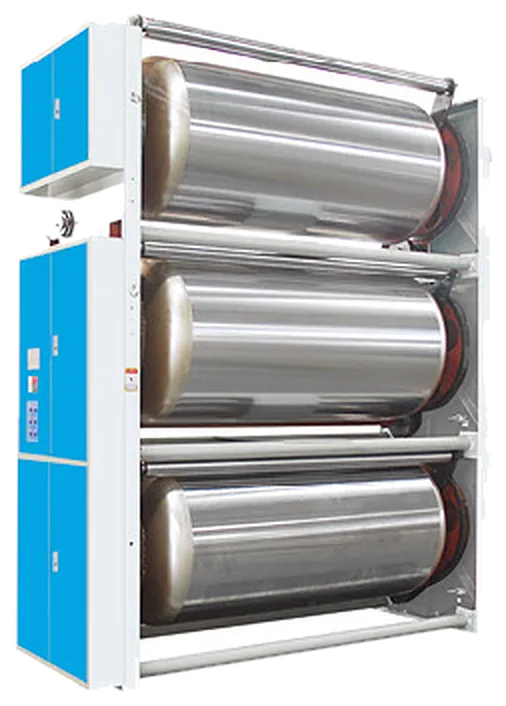

KM Paper Preheat Cylinder
- 1400–2500 mm
- 150–180 °C

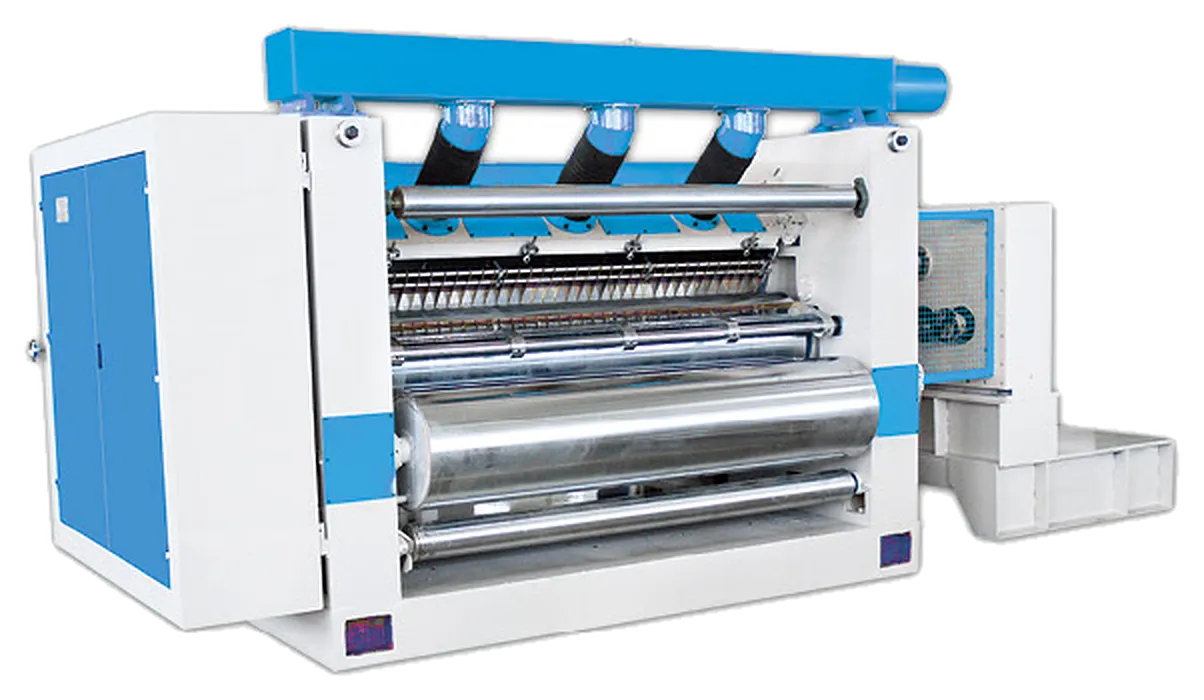

KM Fingerless Type Single Facer
KM-270/280/320/360/380- 100–200 m/min
- 1400–2300 mm

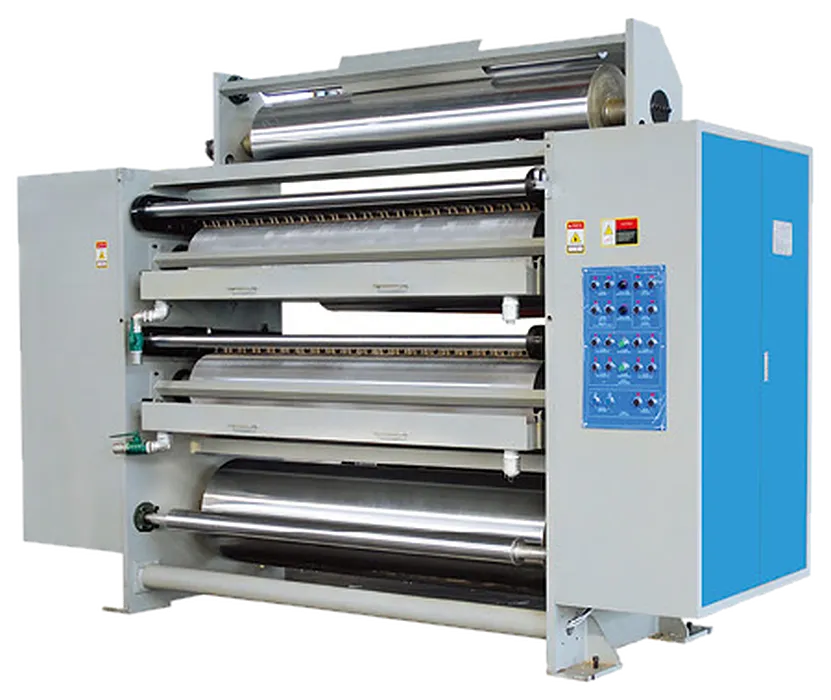

KM Gluing Machine
- >200 °C
- Φ216 / Φ240 mm

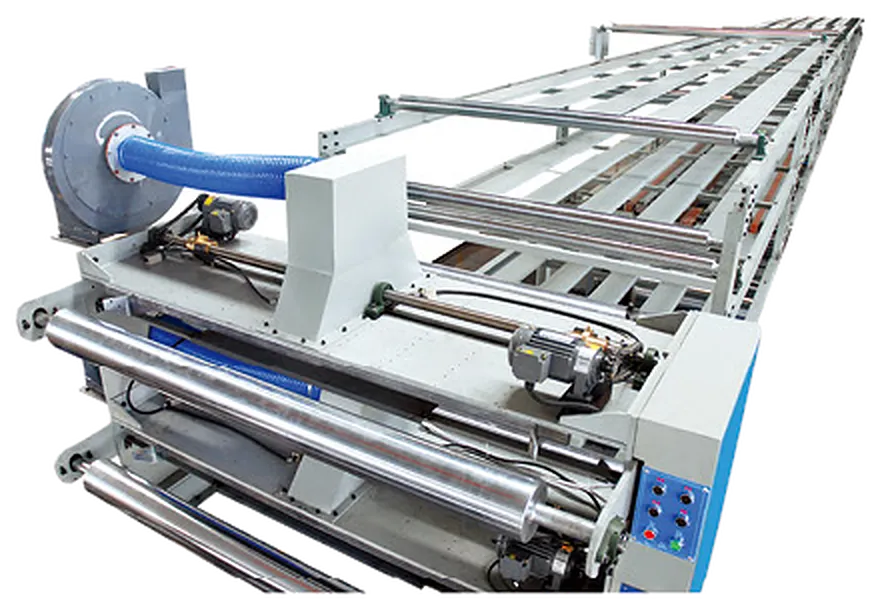

KM Over Bridge

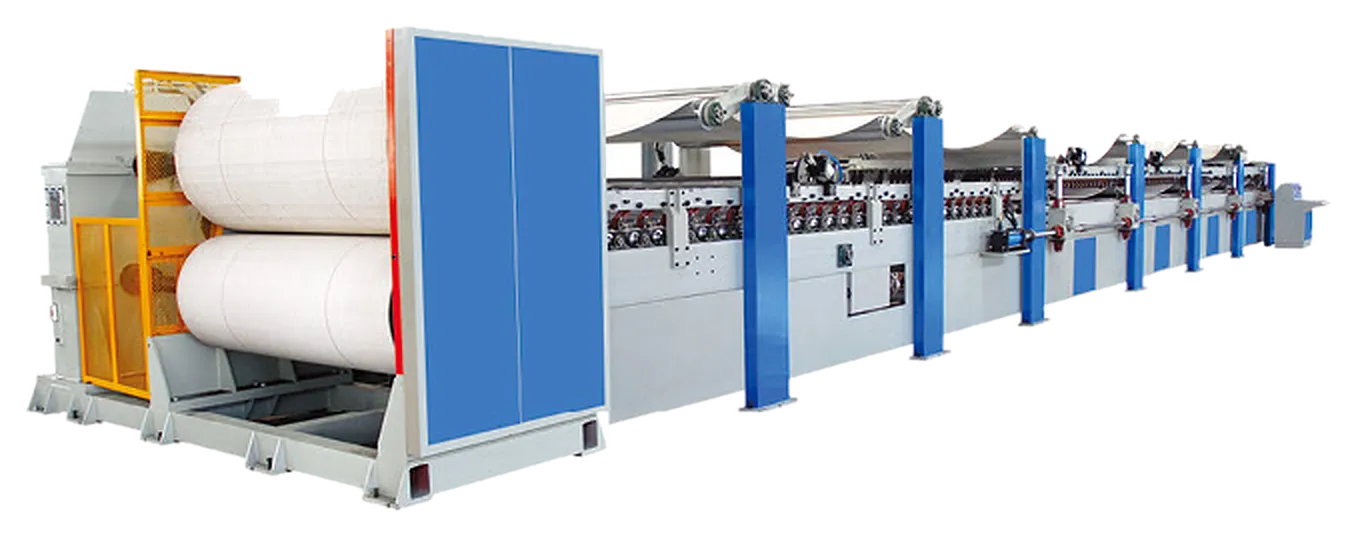

KM Double Facer (Heavy Type)
- 1400–2400 mm
- 9–22 hotplates
Not Sure Which Machine Fits?
Tell us your board, sizes and output. We will recommend the right configuration.
