AS-016A
Semi-Auto Servo-Drive Stitcher + Auto Wire Feeder
Servo-drive box stitcher at 428 stitches/min, with automatic wire feeder.
- 428 stitches/min
- 3–8 mm board
Gallery
Gallery
Overview
The AS-016A stitches corrugated boxes with a servo drive and an automatic wire feeder. It runs three stitching modes, changes orders in about three minutes and needs no special training to operate.
Applications
- Glued and stitched cartons
- Box finishing
Key features
Key features
01 /Three-minute quick order change
02 /Easy operation, no training necessary
03 /Single-pin stitching: single pins all the way
04 /Tag stitch: double stitches at the start and end for reinforcement, single pins in the middle
05 /Double-pin stitching: double pins all the way
06 /Automatic batch ejector and batch counter
07 /Board thickness 3 to 8 mm, single or double wall

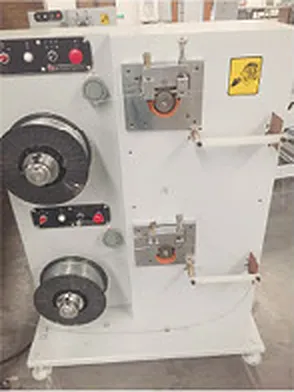

08 /Wire length 36 to 37 mm (not adjustable), 2 kg wire spool
09 /Wire type and size depend on customer requirement
10 /Manual checking function
Technical specifications
Technical specifications
Specifications as per current catalogue. Final configuration confirmed at quotation.
- Max (L+W)×2
- 3700 mm
- Min (L+W)×2
- 480 mm
- Max (S+H+S)
- 1515 mm
- Min (S+H+S)
- 300 mm
- L
- 90–1100 mm
- W
- 150–750 mm
- Height of feeder
- 900 mm
- Machine speed
- 428 stitches/min
- No. of stitching
- 1–99
- TS
- 45 mm
- Stitching pitch
- 30–110 mm
Specifications as per current catalogue. Final configuration confirmed at quotation.
