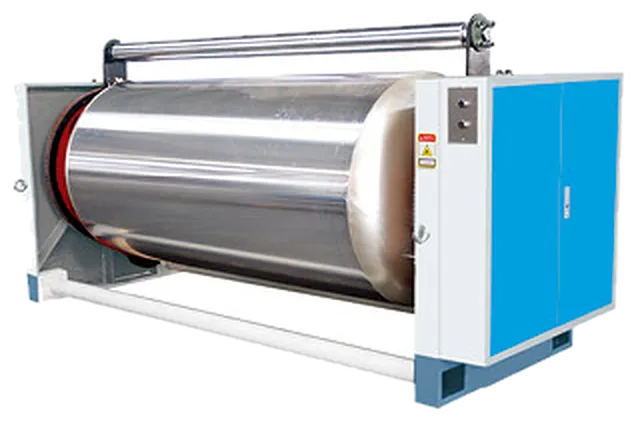

KM Paper Preheat Cylinder
Steam preheat cylinder for liner and core paper, 1400 to 2500 mm wide.
- 1400–2500 mm
- 150–180 °C
Gallery
Gallery
Overview
The preheat cylinder warms paper before it reaches the single facer or double facer. The wrap angle adjusts through 360° so heat transfer can be set for each paper and speed.
Applications
- Corrugated board plants
- 3, 5 and 7 ply board
Technical specifications
Technical specifications
Specifications as per current catalogue. Final configuration confirmed at quotation.
- Effective width
- 1400–2500 mm
- Roller diameter
- Φ600 / Φ900 / Φ1000 mm
- Angle adjustment
- 360° rotation
- Angle shaft
- Φ87 mm × 2
- Steam temperature
- 150–180 °C
- Steam pressure
- 0.8–1.3 MPa
- Motor
- 0.37 kW
- Rotation
- Auto or passive
- Materials and origin
- Steam rotation joint: Luguan Qiu; preheater: Hangang or Jigang; bearings: Hangzhou (Harbin, Wafangdian, Luoyang for choice); contacts: CHINT
Specifications as per current catalogue. Final configuration confirmed at quotation.
