01 / Corrugation Machinery

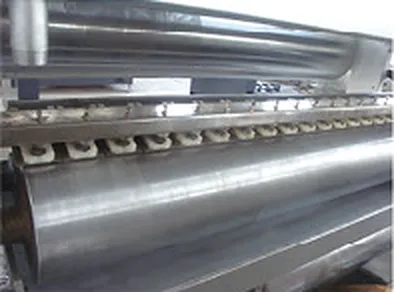

KM Gluing Machine
Glue application machine for the double facer, for 100 m/min and faster lines.
- >200 °C
- Φ216 / Φ240 mm
Gallery
Gallery
Overview
The gluing machine applies glue to the single-faced web before it joins the next liner in the double facer. Two configurations are listed: one for lines at 100 m/min and one for faster lines.
Applications
- Corrugated board plants
- 3, 5 and 7 ply board
Technical specifications
Technical specifications
Specifications as per current catalogue. Final configuration confirmed at quotation.
| Item | 100 m/min | >100 m/min |
|---|---|---|
| Pre-heater temperature | >200 °C | |
| Steam pressure | 0.8–1.2 MPa | |
| Air source system | 0.4–0.7 MPa | |
| Glue roller | Φ216 mm | Φ240 mm |
| Fixed paste roller | Φ114 mm | Φ114 mm |
| Lower and upper preheat roller | Φ300 mm | Φ402 mm |
| Over-paper roller | Φ89 mm | Φ89 mm |
| Glue roller motor | 3 kW | |
| Glue pump motor | 2.2 kW | |
| Part | Brand or origin |
|---|---|
| Glue roller and fixed paste roller | Tiangang (45 quenching steel) |
| Preheat roller | Tiangang or Jigang (Q235B container board) |
| Bearing | HRB, ZWZ, LYC |
| Touch screen | Local brand (Taiwan Weinview or MCGS for choice) |
| Contacts, air switch | CHINT |
| PLC and frequency machine | Local brand (Taiwan Delta for choice) |
| Loose glue dispensing pumps | Hebei Yandong |
| Traps | Beijing |
Specifications as per current catalogue. Final configuration confirmed at quotation.
